RB/BR/115

Impact Wrench - Master 35

Impact Wrench -Master 35


Arbil No. RB/BR/115

Network Rail CAT No: NP/PT/002299

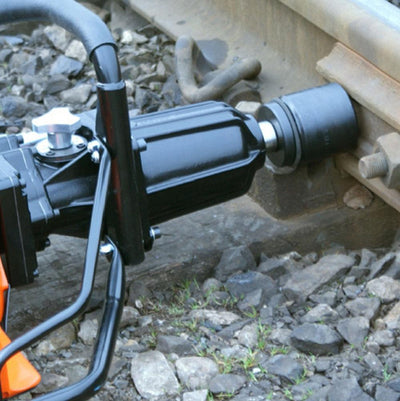

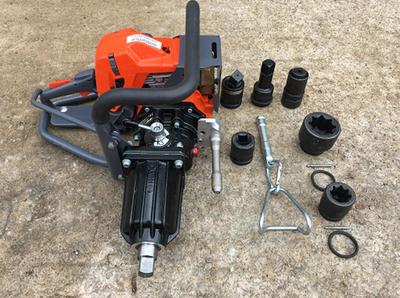

This petrol driven impact wrench is designed for loosening/tightening all railway fasteners and using the safety quick release drilling attachment for drilling holes in timber

  • Drive: Standard 1"
  • Torque Range: 500 – 2,500Nm approximately. It is possible to generate higher torques under special conditions. The Master will loosen any screwed fastener previously tightened by any other Petrol/Gas Driven Impact Wrench.

Engine:

  • Two stroke/cycle Special Airtec EMAK 63.4 c.c. complying with EUR5 and EPA3 Standards
  • 3.4 HP 2.6kW @ 7800rpm

Fastener Type

  • Bolt: 16 to 32mm (5/8" to 1.1/4")
  • Rectangular: all sizes
  • Hexagon: up to 83mm
  • Square/Bi-Square: up to 67mm

Dimensions:

  • Length: 600mm
  • Height: 284mm
  • Width: 442mm
  • Weight: 17.9 Kgs







Operation levels based on ISO3744

Acoustic Pressure (LpA) 101.7 dBA

Power (LWA) 114.8 dBA

Always wear ear protection


*Please note, accessories are not included.
