Type B Trolley - Arbil Rail

RB/BR/151

Type B Trolley

Type B Trolley (Wooden Top with Non-Insulated Wheels)

Arbil No. - RB/BR/151

Network Rail CAT No: 0068/19193

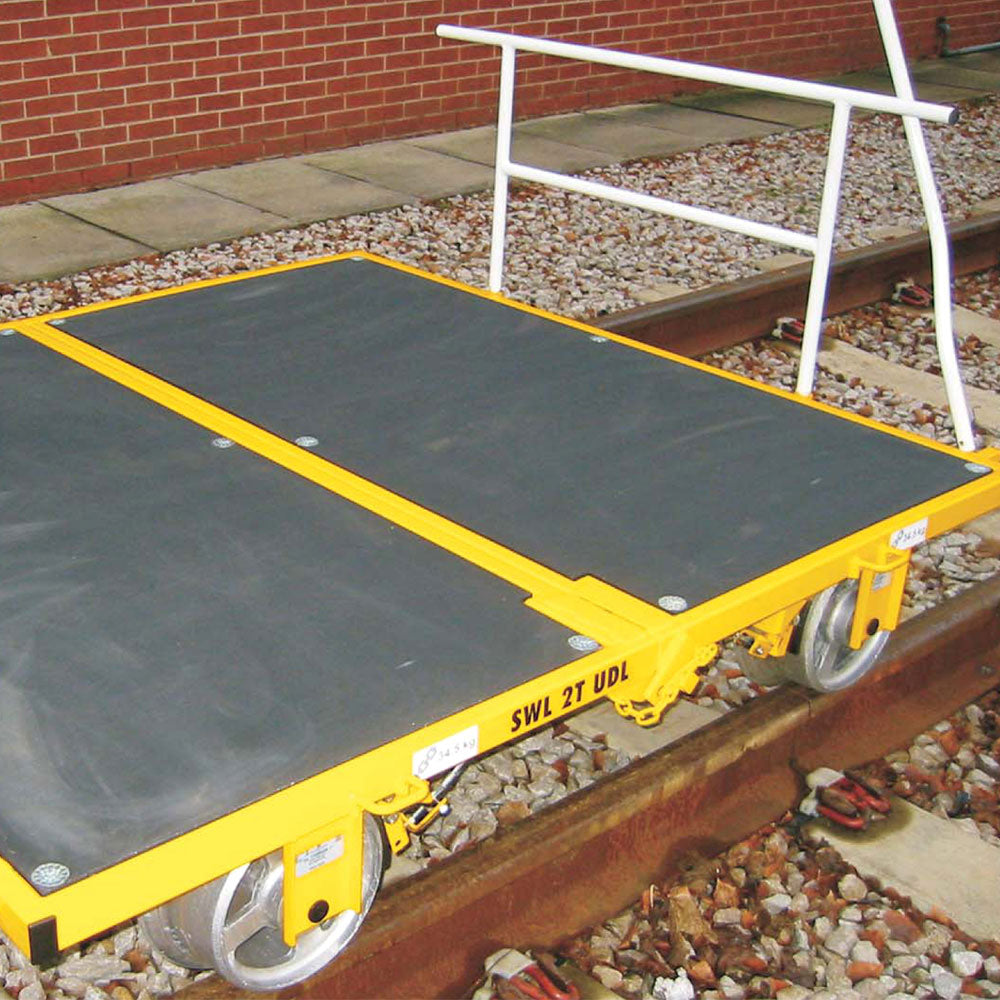

The Permaquip™ Type B Trolley is designed to be used as a manual propelled, stand-alone load-bearing rolling platform for use on-track.

Each Type B Trolley is equipped with a fail-safe braking system and is supplied with detachable Brake and Push Handles. The Type B Trolley has been designed to be split into 2 halves to aid handling and transporting to and from site.

  • Capacity - 2,000kg UDL (1,000Kg on Network Rail & LUL Infrastructure)
  • Length - 1,940mm
  • Width  - 1,800mm
  • Height - 335mm
  • Weight - 130kg
Note that all loads up to and including the maximum shown should be uniformly distributed.

    Aluminium deck version also available along with a trolley with insulated wheels for third rail use.

    Contact the Rail Team for more information
