RB/BR/039

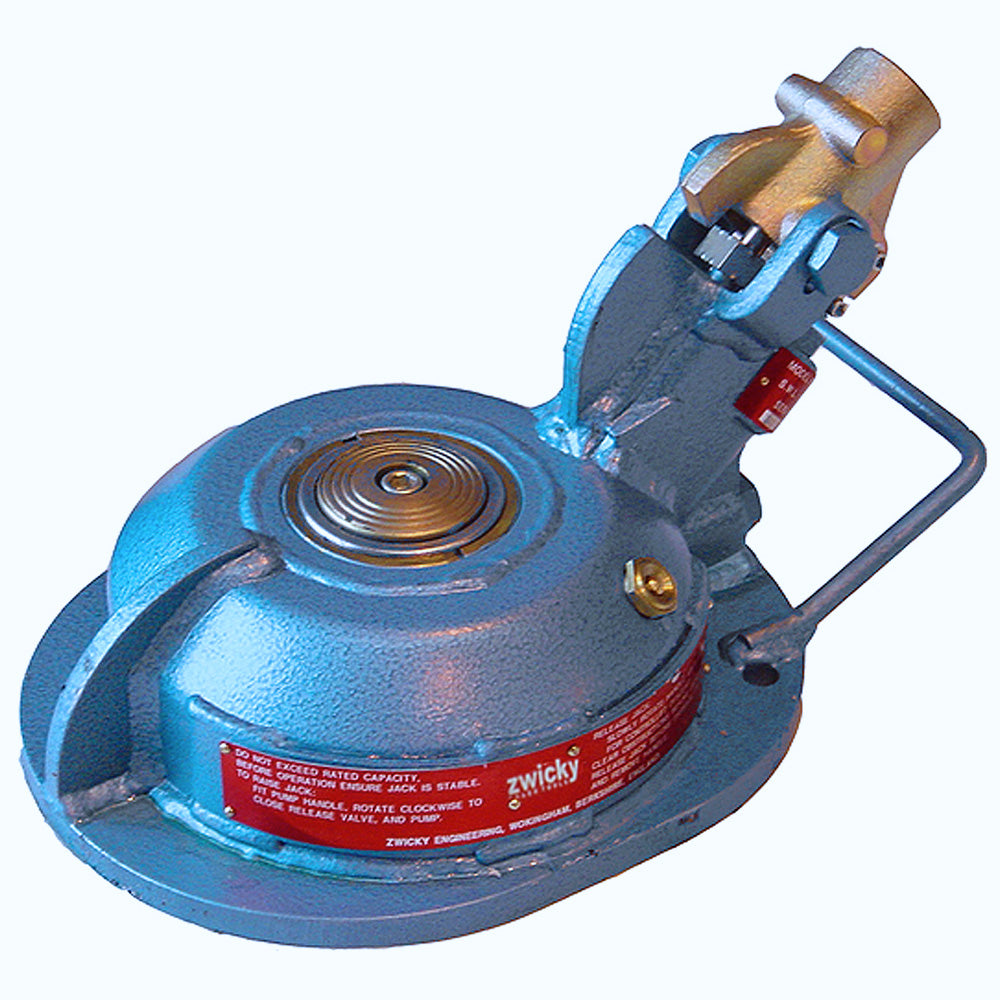

Zwicky™ F1054 Hydraulic Pan Jack Type D

Zwicky™ F1054 Pan Jack - Type D

Arbil No. - RB/BR/039

Network Rail CAT No: 0039/037260

This obstructionless jack is fitted with an overload safety valve and tested to 25% over the rated capacity.

The jack is placed under the rail without removal of ballast. Despite its low height of 95mm the jack is capable of a 101mm lift due to its hydraulic telescopic ram.

  • Safe working load: 10t
  • Closed height: 95mm
  • Extended height: 196mm
  • Lifting stroke: 101mm
  • Weight: 16.5kg

Operating levers available:

Operator instructions:
