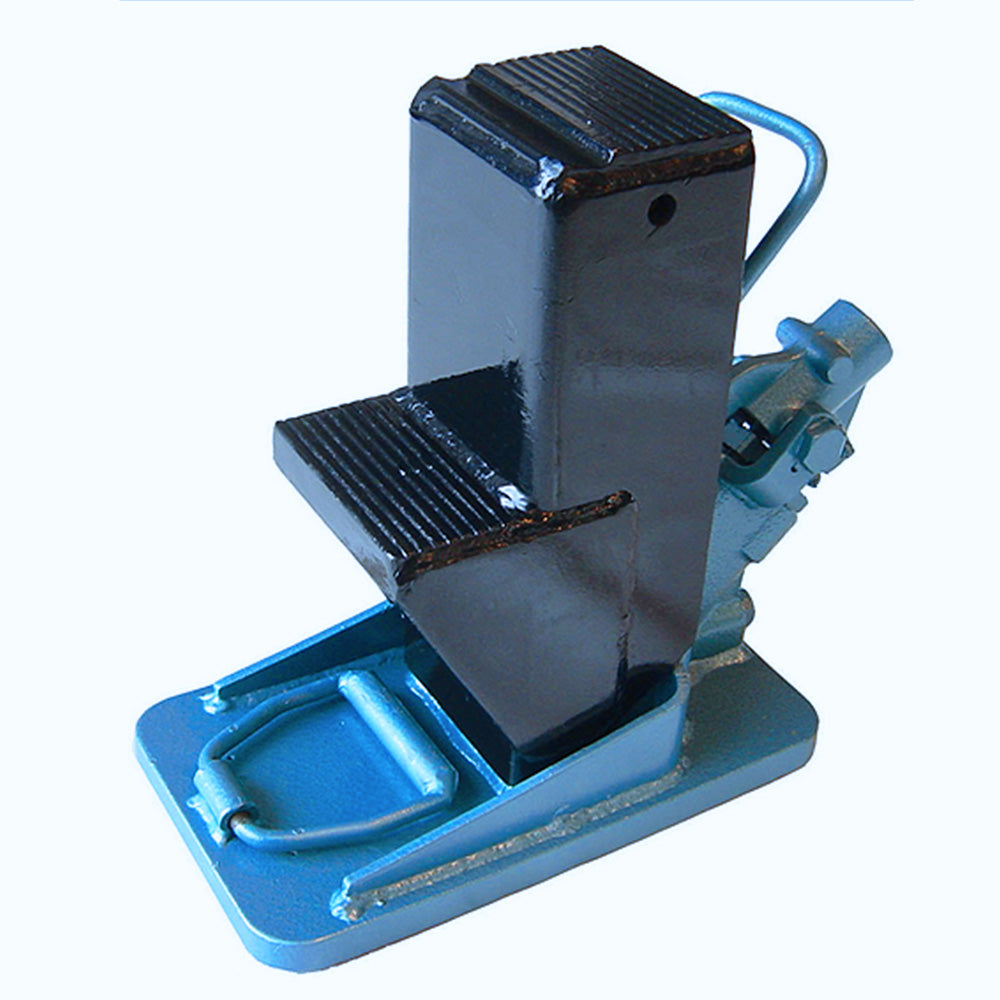

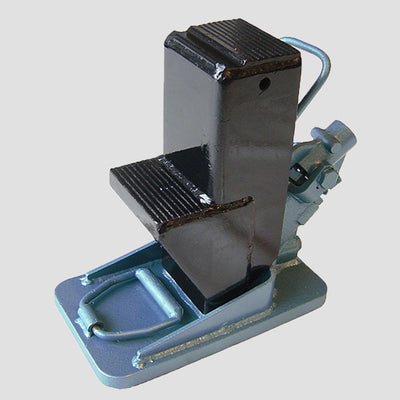

Zwicky™ F1527 Hydraulic Toe Jack Type C

Zwicky™ F1527 Toe Jack - Type C

Arbil No. - RB/BR/038

Network Rail CAT No: 0039/037255

Supplied with an overload safety valve and tested to 25% over the rated capacity. Designed for use on switches and crossings, this heavy duty jack is obstructionless for rails 42kg/m and over.

  • Safe working load: 20t - head, 15t - toe
  • Closed height: 343mm - head, 191mm - toe
  • Toe to head: 152mm
  • Lifting stroke: 110mm
  • Weight: 36kg

Operating levers available:

Operator instructions:
