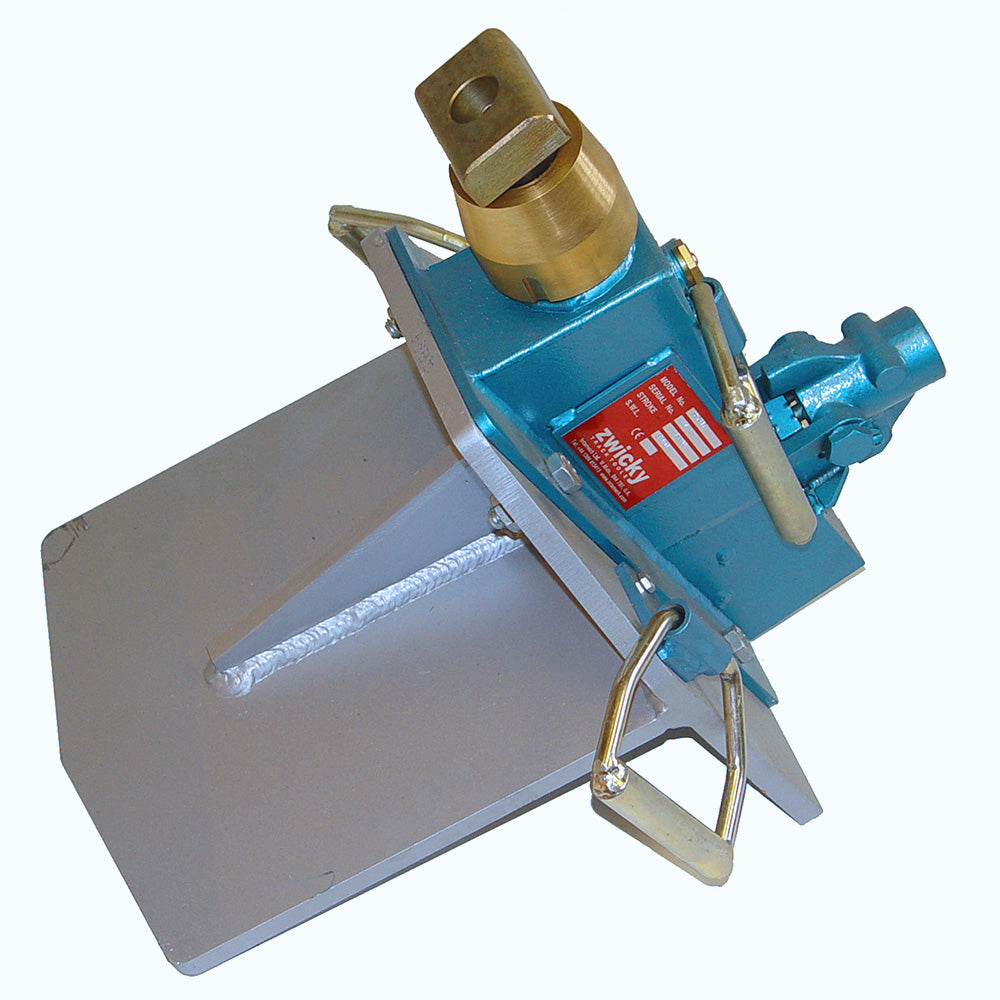

Zwicky™ SB7417 Track Aligner Type J
Arbil No. - RB/BR/045
Network Rail CAT No: 0039/000003
This obstructionless hydraulic jack is designed for the aligning and slewing of track, points and crossings.
The swivel head of the ram has been designed so that it can be positioned against the web of any rail including flat bottom rails as required.
Operating levers available:
Zwicky™ track jacks have been used by maintenance teams throughout the world for almost a century and have acquired a well-earned reputation for being the most durable and effective tool of its type on the market.
The 805BR Toe Jack heads up the range with a capacity of 8 tonnes whilst the 1054 Pan Jack is capable of 10 tonnes. Despite the Pan Jack's low closed height of 95 mm, it boasts a 101mm lift, thanks to its telescopic hydraulic ram. Both jacks, like their 20 tonne F1527 big brother, are obstructionless.
The standard range is completed with the obstructionless Zwicky SB7417 Track Aligner, a unique product design chat is used for the aligning and slewing of track, points and crossings. AII models are fitted with an overload safety valve.
Standard paint finish is hammered blue - alternative colour coding is available upon request. All models are available with either standard operating levers or insulated, which are specifically designed for third rail applications.
